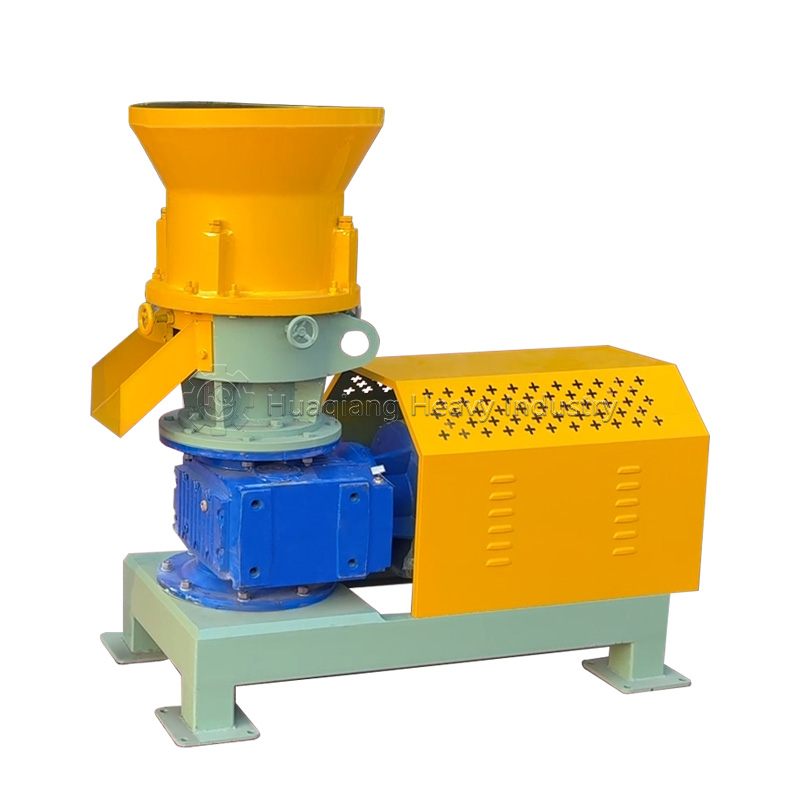

Advantages and applications of the flat die pelleting machine

fertilizer granulator Nov 21, 2025

The flat die pelleting machine offers significant advantages, with the larger pressure wheel being a key feature. This larger pressure wheel also increases the bearing’s ability to withstand pressure, making the equipment more stable and reliable, and reducing failures caused by pressure. Furthermore, the larger pressure wheel prevents heat generated by extrusion friction from being transmitted to the bearing chamber, ensuring the bearing operates at a low temperature and preventing lubricant leakage, thus extending bearing life. Furthermore, the larger pressure wheel can be repaired two to three times, reducing maintenance costs and increasing project profitability, offering significant advantages over similar equipment.

The flat die pelleting machine is suitable for a wide range of materials. In agriculture, crop straw, such as corn stalks, wheat straw, and rice husks, can be processed into biomass pellet fuel or organic fertilizer. In the domestic sector, some household waste, after sorting and processing, can also be used for pelletizing, achieving resource recycling. In industry, the flat die pelleting machine can easily handle materials such as biofertilizer, coal, carbon black, kaolin, and stone powder, demonstrating its strong material adaptability.

Flat die pelleting machines also play a positive role in environmental protection. On the one hand, they can process large amounts of agricultural and forestry waste, reducing environmental pollution and enabling resource recycling. On the other hand, by converting degradable materials into biodegradable plastic pellets, they provide a new approach to addressing white pollution, promoting the development of environmentally friendly materials and facilitating the achievement of sustainable development goals.

A complete analysis of the application fields of cage crusher

fertilizer granulator Nov 20, 2025

Due to their unique pulverizing mechanism and outstanding performance, cage crushers play an indispensable role in numerous industries and have a wide range of applications.

In the building materials industry, brick and tile factories often use cage grinders to process soft and brittle materials such as shale, industrial slag, and dry clay. After these materials are crushed by cage grinders, a high proportion of fine powder particles is produced, which is crucial for brick forming.

The chemical industry is also an important application for cage crushers. They can grind medium-hard chemical raw materials such as ammonium chloride and ammonium sulfate, ensuring that these raw materials can fully participate in subsequent chemical reactions, thereby improving the production efficiency and quality of chemical products.

In compound fertilizer production, cage crushers are also indispensable for the pulverization of fertilizer raw materials such as urea. This pulverization of raw materials like urea facilitates the even release of nutrients in the fertilizer, enhancing its effectiveness.

In addition, in the production of organic fertilizers, cage crushers can crush organic waste such as sheep manure and straw, so that these wastes can better participate in the fermentation process and be converted into high-quality organic fertilizers, providing a green and environmentally friendly source of fertilizers for agricultural production, helping to improve soil and the healthy growth of crops.

Drum fertilizer cooler selection: Consider key dimensions and avoid common mistakes

fertilizer granulator Nov 19, 2025

Choosing the right drum fertilizer cooler not only ensures effective material cooling but also reduces subsequent operating costs. However, when selecting a drum fertilizer cooler, it’s easy to fall into the trap of focusing solely on throughput, overlooking key factors like material properties and operating requirements.

First, clarifying the material properties is essential. Differences in moisture, particle size, and viscosity between materials directly impact cooling performance. For example, high-humidity materials tend to adhere to the drum’s inner walls, so a model with internal scrapers or special liners should be selected to prevent material accumulation. For fine powders, sealing performance is crucial to prevent dust leakage during cooling, requiring efficient, sealed feed and discharge devices. Ignoring material properties can lead to uneven cooling and equipment blockage, even if the throughput is appropriate.

Second, determine the cooling method based on cooling requirements. If the material needs to be cooled quickly and has no special requirements for the cooling medium, forced air cooling can be chosen to improve cooling efficiency by increasing air volume. If the material temperature is extremely high (over 600°C) or needs to be protected from air contact, jacket cooling is preferred. This uses thermal oil or cold water for indirect cooling, minimizing material contact with the outside world.

Finally, drum fertilizer cooler parameters should be tailored to the operating conditions. Consider the workshop space (determining drum length and diameter), power supply voltage (matching drive motor parameters), and ease of maintenance (ease of disassembly and cleaning). For example, if workshop height is limited, a horizontally arranged short-drum machine may be appropriate. If continuous production is essential, a machine with fault alarms and automatic cleaning features should be selected to minimize downtime for maintenance.

Key considerations for fertilizer coating machine selection

fertilizer granulator Nov 18, 2025

When selecting a coating machine, fertilizer companies should consider their own production needs and focus on three key factors to avoid mismatching the equipment with their production.

First, consider compatibility with the particle characteristics. For large fertilizer particles (diameters over 5mm), a wide-channel coating machine with an anti-sticking guide structure is recommended to prevent particle accumulation and blockage within the channel. For particles with high moisture content (above 12%), a conveyor assembly with an anti-stick coating is preferred. For organic fertilizer particles containing fibrous impurities, it is also important to confirm whether the coating machine is equipped with a pre-filter to prevent impurities from entanglement with mechanical components.

Second, consider capacity compatibility. For small-scale production (daily production capacity under 50 tons), a batch coating machine can be selected, offering flexible batch adjustments and suitable for producing a variety of fertilizers in small batches. For large-scale production (daily production capacity over 100 tons), a continuous machine is recommended to ensure that the conveyor speed is synchronized with the material feed rate.

Finally, consider the compatibility of the coating material. If using PE film, confirm that the equipment’s heat-sealing temperature range covers 100-130°C. If using functional coating materials (such as films containing anti-caking agents), check that the equipment’s tension system supports low-tension adjustment to avoid film breakage and impacting performance. Additionally, pay attention to the equipment’s adaptability to film widths and whether it can be flexibly adjusted to accommodate different packaging specifications, minimizing material waste due to film mismatches.

Controlling pellet strength in ring die pelleting machines: Key to fertilizer transportation and storage

fertilizer granulator Nov 17, 2025

Pellet strength is a core performance indicator for fertilizer products. Ring die pelleting machines require multi-step control to ensure pellets can withstand the pressure of transportation and stacking, minimizing breakage and loss.

First, consider the raw material ratio. If the organic matter content in production is too high (over 60%), binders such as clay and bentonite should be added (control the amount to 3%-5%) to increase the viscosity of the raw materials and lay the foundation for pellet strength.

If the proportion of inorganic fertilizer is high, the moisture content of the raw materials should be controlled between 14% and 16% to avoid pellet brittleness caused by too low a moisture content and easy sticking to the ring die pelleting machine due to too high a moisture content.

Selecting the ring die pelleting machine compression ratio is also crucial. The compression ratio (the ratio of the ring die aperture to the effective thickness) should be adjusted according to the fertilizer type. For organic fertilizers with high fiber content, a low compression ratio of 1:8-1:10 is recommended to prevent pellets from being too hard and easily broken. For compound fertilizers, a high compression ratio of 1:12-1:15 is recommended to enhance pellet density. During production, regular spot checks can be performed using a pellet strength tester. If the strength is insufficient, the steam supply to the conditioner can be temporarily increased (by 10%-15%).

In addition, the gap between the roller and the ring die should be controlled within a range of 0.1-0.3mm. A gap too large will cause the raw material to slip, resulting in insufficient pellet density; a gap too small will increase wear and affect pellet consistency. By synergistically controlling these three factors, the compressive strength of fertilizer pellets can be stabilized at above 20N, meeting transportation and storage requirements.

How to adapt a BB fertilizer blender to different raw material characteristics?

fertilizer granulator Nov 15, 2025

BB fertilizer raw materials come in a variety of forms (granular, powdered, and fiber-containing). BB fertilizer blenders require targeted adjustments to accommodate these different raw material characteristics and avoid mixing problems.

For pure granular raw materials (such as urea and diammonium phosphate granules), which have relatively small density differences but are prone to rolling and stratification, the BB fertilizer blender should be equipped with guide plates within the mixer drum to guide the raw materials into upward and downward circulation and control the feed order. Adding the denser diammonium phosphate first, followed by the lighter urea, can reduce initial stratification. The speed can be appropriately reduced in the later stages of mixing to prevent excessive collisions between particles that could lead to breakage.

If the raw materials contain powdered ingredients (such as potassium chloride powder or trace element powder), a dustproof seal should be installed at the BB fertilizer blender feed port to prevent dust from escaping. Additionally, an atomizing humidifier (control the humidity to ≤15%) should be installed within the mixer drum. A small amount of humidification can enhance adhesion between the powdered raw materials and the granules, preventing dust from becoming suspended.

When the raw materials contain fiber organic fertilizer (such as fermented straw powder), it is necessary to use a paddle with a shearing function to prevent the fibers from entangled and clumping. At the same time, the fiber raw materials should be crushed to less than 3mm in advance to reduce mixing resistance. During the mixing process, the machine can be stopped and observed every 3 minutes. If fiber clumps are found, the paddle angle needs to be adjusted to enhance the shearing and dispersion effect to ensure that the fibers and granular fertilizer are fully integrated.

How can you use new type organic fertilizer granulators more efficiently and save energy and materials?

fertilizer granulator Nov 13, 2025

Many organic fertilizer plants are concerned about costs. However, when using new type organic fertilizer granulators, paying attention to two small details can significantly save energy and materials.

To save energy, most new type organic fertilizer granulators are equipped with variable-frequency motors. Avoid running them at maximum speed all the time. For example, when initially feeding, use a low speed of 15 rpm. Once the raw materials have stabilized in the granulation chamber, gradually increase the speed to 20-25 rpm. This prevents the motor from exerting sudden force, saving 10%-15% of energy per hour. Additionally, avoid idling the machine. Do not start the machine until the raw materials are ready. The energy wasted in idling for one hour is enough to generate granules for 20 minutes.

To save materials, the key is to reduce waste. New type organic fertilizer granulators have a return device. Instead of discarding the crushed granules, they are directly returned to the granulation chamber through the return port, where they are mixed with new raw materials and granulated again. This can reduce the waste rate from 10% to less than 3%. Also, do not mix impurities such as stones and iron wire into the raw materials. Impurities will wear out machine parts and crush good particles. Use a sieve before feeding each time to avoid a lot of material waste.

How does a disc granulator create round, uniform fertilizer granules?

fertilizer granulator Oct 18, 2025

The roundness and uniformity of fertilizer granules directly impact the ease of application (spreading uniformity) and product competitiveness. Disc granulators, with their unique “rolling forming” principle, are key equipment for producing high-quality granules. The key lies in precisely controlling parameters to achieve the ideal shaping process within the disc.

Disc granulators do not rely on extrusion to form granules, but instead continuously roll the raw materials within a rotating disc. Initially small granules continuously absorb surrounding powder, gradually growing larger like a “snowball.” During this process, the granules rub against each other, naturally forming a rounded appearance. These granules are particularly suitable for products with high requirements for granule shape, such as organic fertilizers and biological fertilizers.

Pellet quality is determined by several parameters. The first is the disc’s inclination angle. A small angle prolongs the material’s residence time within the disc, resulting in larger particles. A large angle causes the particles to overflow quickly, resulting in smaller particles. The second is the disc’s rotational speed. Low speeds are suitable for low-viscosity raw materials, preventing powder splashing; high speeds are suitable for sticky raw materials like organic fertilizer, enhancing the rolling adsorption effect. The third is the feed rate. Maintaining a uniform feed rate prevents excessive feed from causing particle accumulation and deformation, while insufficient feed leads to uneven particle size.

Furthermore, for fertilizers such as biofertilizers that require the preservation of bacterial inoculants, disc granulators eliminate the need for high-temperature extrusion. The forming process temperature is kept below 40°C, ensuring the survival of the inoculant. The resulting rounded particles are easy to package and transport, ensuring both functionality and commercial appeal.

Common troubleshooting and solutions for double screws compost turning machines

fertilizer granulator Oct 17, 2025

Double screws compost turning machines operate frequently in organic fertilizer fermentation workshops. Improper operation or untimely maintenance can easily lead to problems such as uneven turning, insufficient power, and equipment jamming, impacting fermentation progress.

1. Dead corners remain after turning, and some areas remain uncomposted

The main cause is excessive clearance between the spiral blades and the sidewalls of the fermentation tank (over 10 cm), or the double screws compost turning machine is moving too fast, preventing material from being turned over the edges. To address this, adjust the position of the spiral blades to reduce the clearance to within 5 cm. Also, reduce the double screws compost turning machine’s speed to ensure that every area is thoroughly turned.

2. Motor overload and tripping, insufficient power

This is often caused by excessive moisture content (over 70%) in the raw materials, resulting in increased friction on the spiral blades due to high viscosity, or by large impurities in the raw materials that may be blocking the blades. To address this, adjust the moisture content of the raw materials to 60%-65% before clearing impurities from the fermentation tank. If the compost tank is frequently overloaded, check the tightness of the motor belt and tighten or replace it.

3. Rapid wear of spiral blades, reducing turning capacity

This is primarily due to the presence of hard impurities (such as sand and gravel) in the raw materials, or the blade material not being suitable for wear resistance. To address this, install a screen to filter out hard particles before the raw materials arrive. Regularly inspect the blades for wear. If the blade thickness has decreased by 1/3 or cracks appear, replace them promptly.

Drum fertilizer dryer: The logic of “Efficient Dehydration” for high-moisture fertilizers

fertilizer granulator Oct 16, 2025

In fertilizer production, high-moisture raw materials (such as fermented organic fertilizers and wet materials after compound fertilizer granulation) are prone to caking and mold if not dried promptly, affecting product quality and storage life. Drum fertilizer dryers, with their “continuous drying + uniform heating” characteristics, have become a core dehydration equipment in the fertilizer industry. Their operating principle is precisely adapted to the characteristics of fertilizer raw materials.

The core structure of a drum fertilizer dryer is an inclined rotating drum equipped with a heating system and a discharge device. During operation, high-moisture fertilizer (30%-50% moisture content) enters the drum through the high-end feed port. The motor drives the drum to slowly rotate, continuously turning the material and moving it forward. Simultaneously, the high-temperature hot air generated by the heating system fully contacts the material, rapidly removing moisture from the material through a dual heat transfer process of “convection and conduction.”

To prevent fertilizer clumping, a lifting plate is often installed inside the drum. This plate continuously lifts and drops the material, increasing the heating surface and ensuring uniform drying of each portion. The drum’s tilt angle is adjustable to control the material’s residence time within the drum, thereby precisely controlling the moisture content after drying. The entire process is continuous and stable, suitable for the mass production needs of organic fertilizer production lines. The dried material is loose and free of lumps, eliminating the need for secondary crushing.
